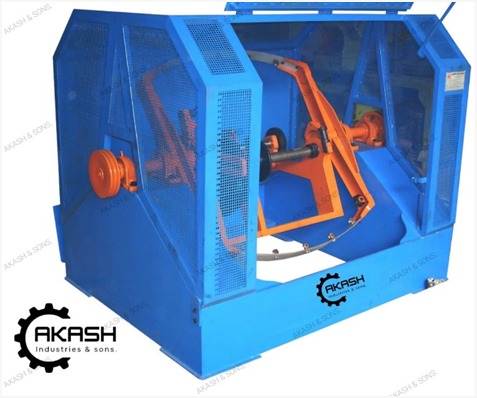

High Speed Bunchers

High Speed Buncher Machine Are Used For Bunching Copper And Steel Wire/Strands.

TECHNICAL SPECIFICATION

Line Configuration	3+1,4+1, 3+1+1 with 24/30/36/48 bobbins.
Laying Bobbin Size inside the Cradle	1000 MM. / 1250 MM. / AND 1600 MM.
Armouring Bobbin Size	400 MM. /450 MM./ 500MM.
Diameter of Single Core	10-50 MM
Diameter After Laid Up Cores	MIN. 25 MM-MAX. 100 MM
Carriage RPM	30/90 RPM/MIN.
Line Speed	10-45 M/MIN
Take Up Drum Size	1600-2200-2600-3200 MM
Lay Length	100 -1800 MM
Drive	Ac Motor And Ac Variable Frequency Drives System

//MAIN FEATURES.

Where Innovation Meets
Manufacturing Excellence

Self-Supporting Skip twisting Cage Rotor Design.
Timing belt drive for each Rotor.
Dynamicallybalanced rotor with double bearing support.
Easy to load, unload bobbins
Mechanical leather shoe clutch for proper tension of cable.
Hardened die steel roller for wire passing.
Easy bobbin locking unlocking by Pintals.
Ac Drive Control with HMI touch screen control panel.

MODEL	WIRE SIZE	MAX. ROTTOR RPM	MOTOR
AIS/BUN/400	.75 MM. – 1.5 MM.	900-1000	5 HP
AIS/BUN/630	.75 MM. – 1.5 MM.	900-1000	7.5 HP
