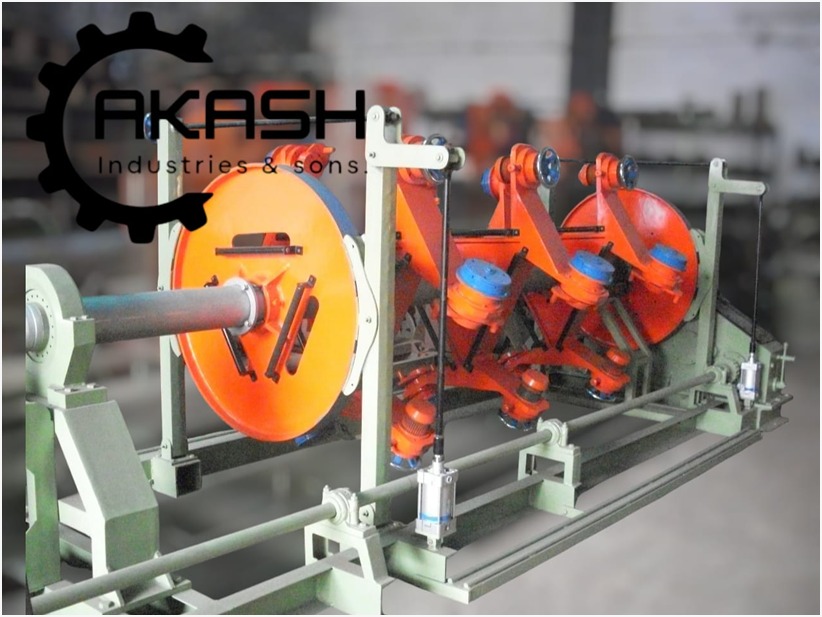

FORK TYPE RIGID STRANDING MACHINE

Rigid Stranded ( Fork type) is used for copper or Aluminium wires to be bunched into huge single unit of compact
conductor for XLPE, Shaped, Spiral or Pre-Spiral and it can also manufacture ASSR/ACSR conductors.

Fork Type Stranding Machine Product Description.

Configuration	7, 12, 18, 24, 30, 36, 42, 48, 72, 84, 90
Bobbin Size	400/500/630
Cage Speed	60 to 160 rpm (with Multi Speed options in each cage)
Construction	Steel fabricated Fork or Cradle type cages supported on bearing At both ends on heavy duty hollow shaft.
Bobbin Holding	Pintle type bobbin holding
Bobbing Tension	Uniform pay off wire tension by individual bend brake type spring loaded sandwich belt.
Haul-off-unit	Dual Grooves type Capstan from 1200 to 3000mm dia.
Take-up reel Size	1200 to 3600 mm flange dia.
Drive	AC Variable Frequency Drives or PLC System
Bobbin Loading	Manual
Direction of Cages	Clock wise / Anti Clockwise, opposite to each other or in the same direction by each cage lever operated individual gear boxes.

//MAIN FEATURES.

Where Innovation Meets
Manufacturing Excellence

Rigid Strander Rotor Design for 1+6+12+18+24+30 Bobbins.
Various Bobbin Size as Per Din Standard.
Multi Speed Special Gear Box for Each Cage.
Shaping Head for Shape Conductor.
Line Drive by Ac Motors with Electrical and Mechanical Synchronization With.
Ac Drive with HMI/PLC Control.
Easy Lay Setting.
Pneumatic Brake System for Each Cage.
Heavy Duty Grooves Type Capstan wheel.

MODEL	WIRE SIZE	MAX. ROTTOR RPM	BOBBIN SIZE
AIS/RS/1+6+12	1.3 MM. -4.77 MM	160-140	500-560-630
AIS/RS/1+6+12+18	1.3 MM. -4.77 MM	160-140-120	500-560-630
AIS/RS/1+6+12+18+24	1.3 MM. -4.77 MM	160-140-120-100	500-560-630
AIS/RS/1+6+12+18+24+30	1.3 MM. -4.77 MM	160-140-120-100-80	500-560-630
