13. Cable Drums and Bobbins
Haul of Caterpillar (Stationery/Rotary) is specially used for insulating line, PVC/ Rubber core laying, taping lines, armouring lines, etc. The Rotary Type Caterpillar is used in power cable laying, telephone cable core laying, XLP cable laying and round wire armouring. We offer highly efficient cutter and puller pneumatic machine that finds usage in various cable manufacturing stages such as
TECHNICAL SPECIFICATION
| Line Configuration | 3+1,4+1, 3+1+1 with 24/30/36/48 bobbins. |
| Laying Bobbin Size inside the Cradle | 1000 MM. / 1250 MM. / AND 1600 MM. |
| Armouring Bobbin Size | 400 MM. /450 MM./ 500MM. |
| Diameter of Single Core | 10-50 MM |
| Diameter After Laid Up Cores | MIN. 25 MM-MAX. 100 MM |
| Carriage RPM | 30/90 RPM/MIN. |
| Line Speed | 10-45 M/MIN |
| Take Up Drum Size | 1600-2200-2600-3200 MM |
| Lay Length | 100 -1800 MM |
| Drive | Ac Motor And Ac Variable Frequency Drives System |
Where Innovation Meets
Manufacturing Excellence

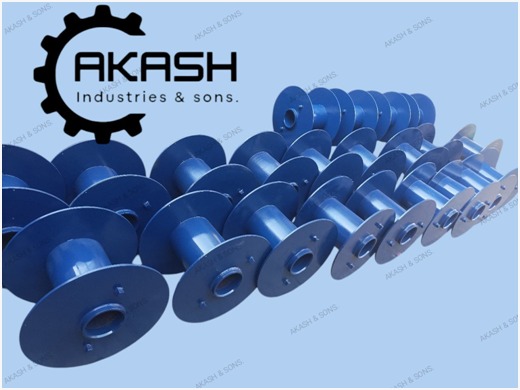

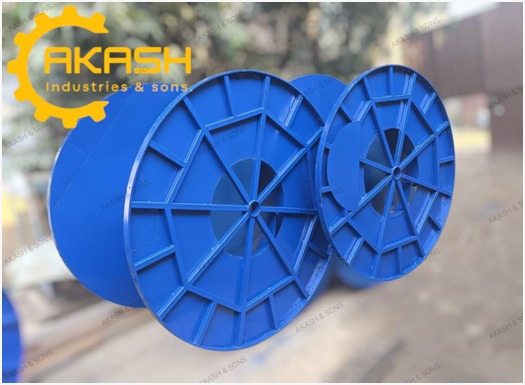

| TYPES OF SPOOL/DRUMS | SIZE RANGE |
|---|---|
|
PROCESS DRUMS |
1000MM -3200 MM |
|
DISPATCH DRUMS |
750 MM -3200 MM |
|
SPOOLS |
250 MM – 630 MM |
