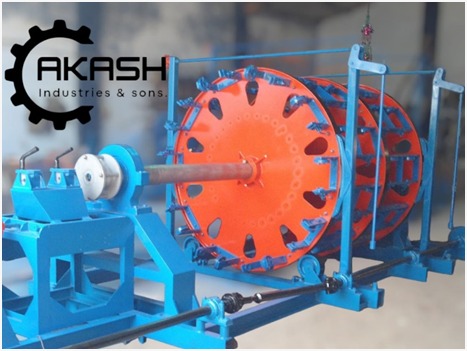

Armouring Twisting Machines
Armouring Machines Are Used For Making Armoured Cable. The Machine Is Used For Round Wire And Flat Strip Armouring On Power Cables And Control Cables. The Armouring Machine Are Manufactured In Single Cage Or Double Cage Configurations.
TECHNICAL SPECIFICATION
| Nos. of Bobbin in a Carriage | 12/24/36/48/54/72/96 |
| Diameter of Bobbin as per DIN | 400/450/500/630 mm. |
| Diameter of Wire | G.I Strip 4.0×0.8mm / G.I Round wire 0.7- 4mm |
| Cable Diameter | 20 mm to 100 mm |
| Lay in mm | 35mm-1000mm. |
| Centre Wire Pay Off Drum Size | 1250-2500mm |
| Carriage RPM | 125/100/75/50/30 |
| Take Up Drum Size | 1250-3000mm |
| Drive | AC Variable Frequency Drives |
Where Innovation Meets
Manufacturing Excellence
| MODEL | WIRE/STRIP SIZE | MAX. ROTTOR RPM | BOBBIN SIZE |
|---|---|---|---|
|
AIS/ARM/24- |
1.5 MM.- 4 MM. |
160-140 |
400-450-500 |
|
AIS/ARM/36 |
1.5 MM.- 4 MM. |
150-130 |
400-450-500 |
|
AIS/ARM/48 OR (24+24) |
1.5 MM.- 4 MM. |
120-110 |
400-450-500 |
|
AIS/ARM/72 OR () |
1.5 MM.- 4 MM. |
100-80 |
400-450-500 |
|
AIS/ARM/96 |
1.5 MM.- 4 MM. |
80-60 |
400-450-500 |
